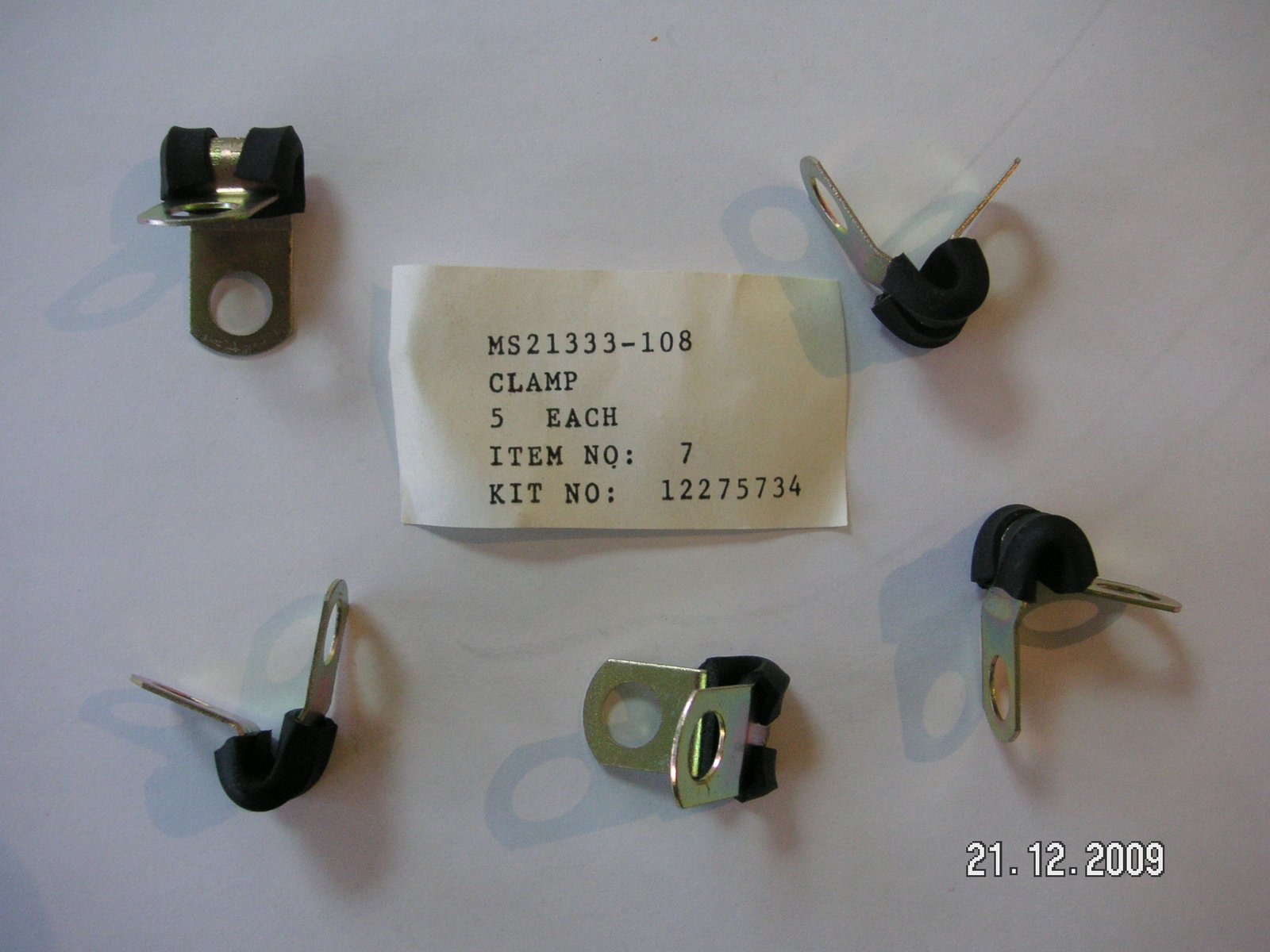

CLAMP, LOOP – NSN: 5340-00-057-3025
Description
CLAMP, LOOP
NSN: 5340-00-057-3025
NSN FLAT: 5340000573025
P/N: MS21333-108
P/N: CMDX2-3PT573025
P/N: NASM21333-108
Suitable for :
| TRUCK, UTILITY: EXPANDED CAPACITY ARMT CARRIER |
| RADAR SET, FIREFINDER (AN/TPQ-36) |
| BRIDGE ARMOR VEHICLE LAUNCHER (AVLB) – MODEL M60A1 |
| VEHICLE, RECOVERY M-88 SERIES |
| TANK, M-60 SERIES |
| TRUCK, 5-TON M939 SERIES |
| TRUCK, VEHICLE SYSTEM, 1 1/4-TON (HMMWV) |
| ARMORED VEHICLE LAUNCH BRIDGE (M60A1 & M48A5) |
TECHNICAL CHARACTERISTICS
HOLE TYPE : ROUND, UNTHREADED
OVERALL WIDTH : 1.43 CENTIMETERS NOMINAL
DIAMETER : 0.87 CENTIMETERS NOMINAL
MATERIAL THICKNESS : 0.08 CENTIMETERS NOMINAL
CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE : 1.59 CENTIMETERS NOMINAL
DISTANCE FROM LOOP CENTER TO TONGUE END : 2.30 CENTIMETERS NOMINAL
LOOP INSIDE DIAMETER : 0.32 CENTIMETERS NOMINAL
MATERIAL : STEEL COMP 1006 BAND OR STEEL COMP 1008 BAND OR STEEL COMP 1010 BAND OR STEEL COMP 1011 BAND OR STEEL COMP 1012 BAND OR STEEL COMP 1013 BAND OR STEEL COMP 1015 BAND OR STEEL COMP 1016 BAND OR STEEL COMP 1017 BAND OR STEEL COMP 1019 BAND OR STEEL COMP 1020 BAND
SURFACE TREATMENT : CADMIUM BAND OR ZINC BAND AND CHROMATE BAND
STYLE DESIGNATOR :SINGLE LOOP
