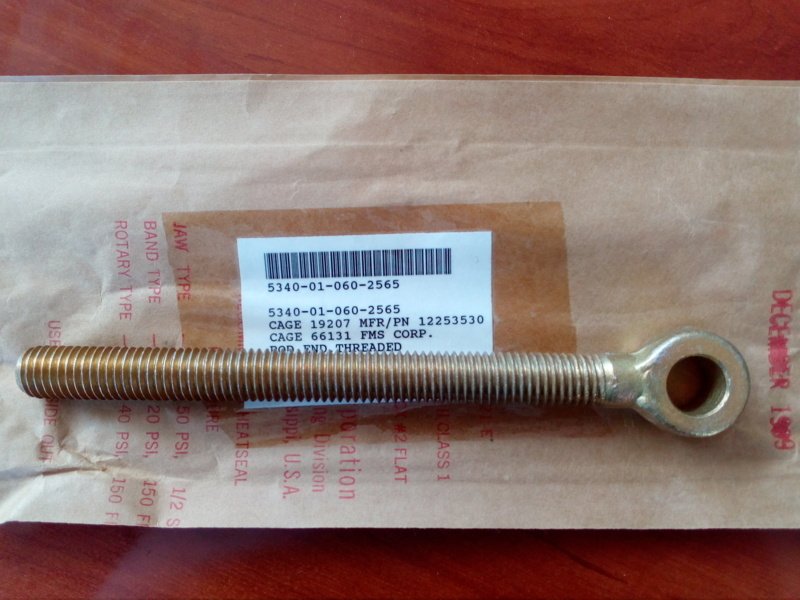

ROD END,THREADED – NSN:5340-01-060-2565

Name: ROD END,THREADED - NSN:5340-01-060-2565
SKU: 1507
Availability: InStock

ROD END,THREADED

NSN: 5340-01-060-2565

NSN Flat: 5340010602565

Part Number: 12253530

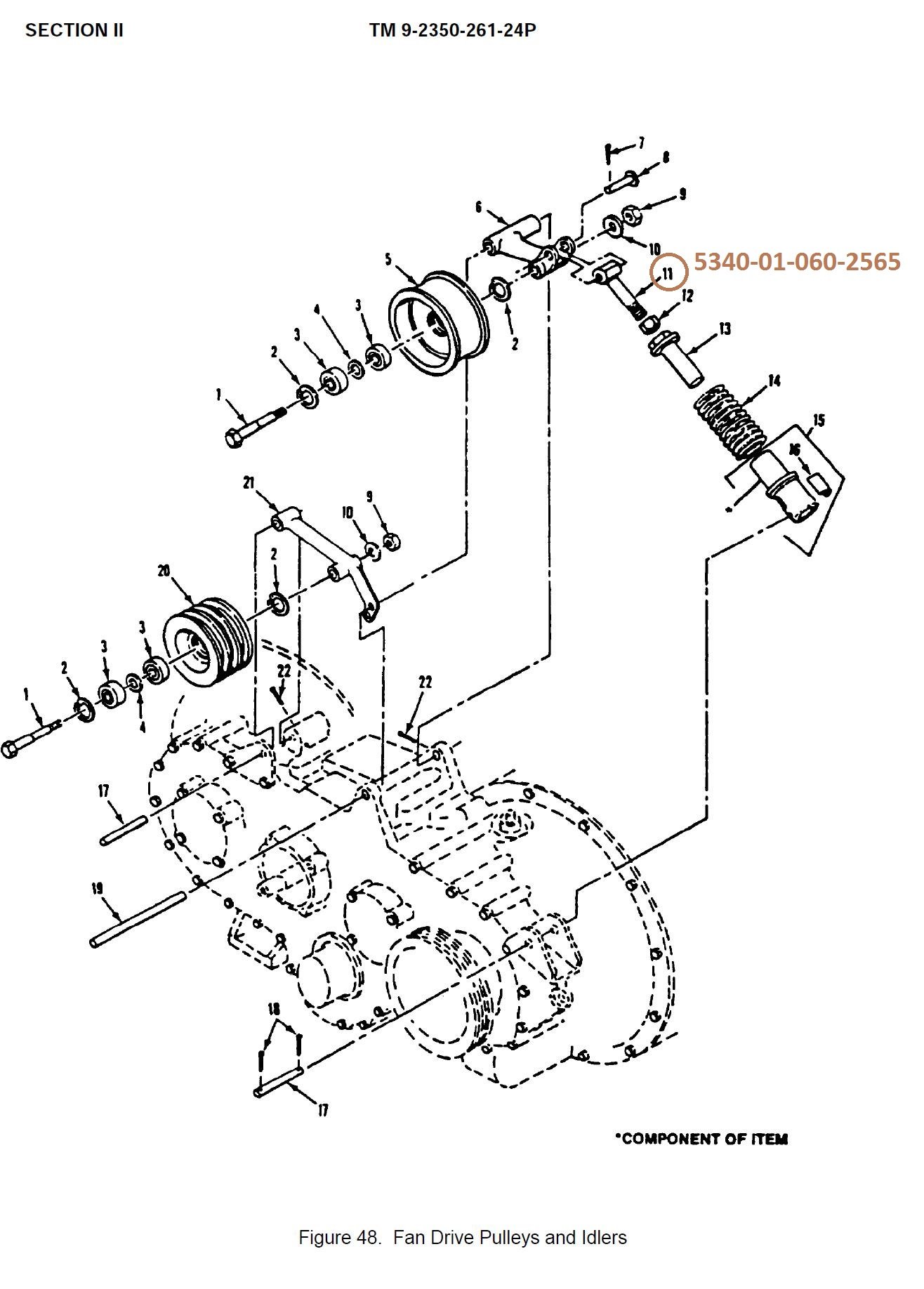

Suitable for use with M113 A1,A2

Defenco is Nato Certified Supplier.
Please place your order or ask for a quote.

TECHNICAL CHARACTERISTICS

THREAD CLASS	2A OVERALL
THREAD DIRECTION	RIGHT-HAND OVERALL
THREAD LENGTH	17.48 CENTIMETERS NOMINAL ROD CONNECTION
OVERALL LENGTH	20.78 CENTIMETERS NOMINAL
UNTHREADED END LENGTH	3.30 CENTIMETERS NOMINAL
UNTHREADED END OUTSIDE DIAMETER	2.84 CENTIMETERS NOMINAL
NOMINAL THREAD SIZE	1.59 CENTIMETERS ROD CONNECTION
III MATERIAL	STEEL COMP 1010 OR STEEL COMP 1025 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A108 ASSN STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR	EXTERNAL THREAD, SOLID END
THREAD SERIES DESIGNATOR	UNC ROD CONNECTION
