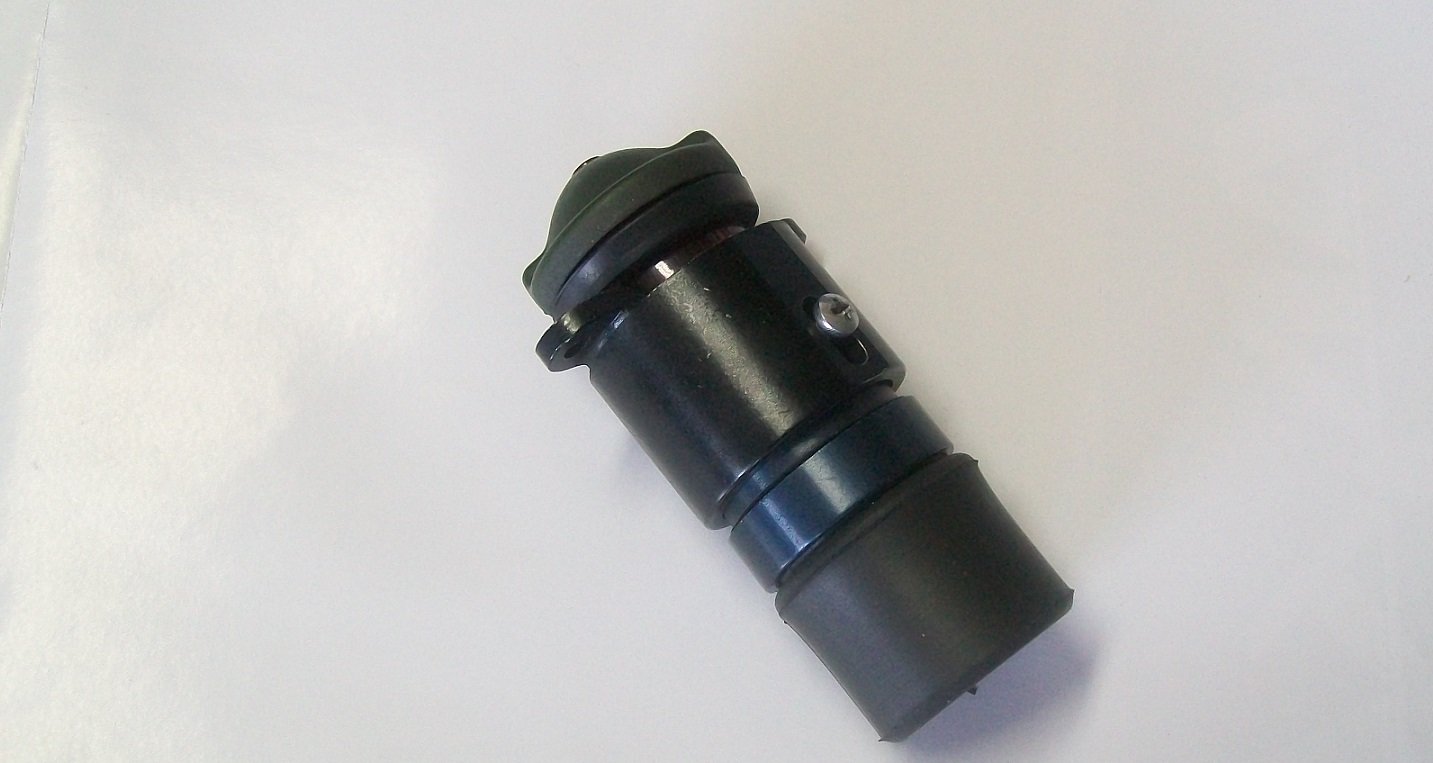

LIGHT,PANEL – NSN: 6210-00-678-6896

Description

LIGHT,PANEL

NSN: 6210-00-678-6896

NSN FLAT: 6210006786896

P/N: 7341764

ALTERNATIVE P/Ns:

161069

100796

TECHNICAL CHARACTERISTICS

OVERALL LENGTH : 8.18 CENTIMETERS NOMINAL
OVERALL DIAMETER : 2.78 CENTIMETERS NOMINAL
LAMP BASE TYPE : ACCOMMODATED MINIATURE BAYONET
LAMP BULB SIZE DESIGNATOR : T-30.5
LENS QUANTITY : 1
LENS COLOR : RED SINGLE LIGHT 1ST POSITION HORIZONTAL
PANEL ACCOMMODATION HOLE DIAMETER : 2.54 CENTIMETERS NOMINAL
MOUNTING METHOD : PANEL
PANEL THICKNESS FOR WHICH DESIGNED : 0.16 CENTIMETERS MAXIMUM
LAMP TYPE ACCOMMODATED AND QUANTITY:  1 INCANDESCENT
LENS TYPE : FLAT, NARROW SINGLE LIGHT 1ST POSITION HORIZONTAL
LENS LIGHT TRANSMISSION CHARACTERISTIC : TRANSLUCENT SINGLE LIGHT 1ST POSITION HORIZONTAL
TRANSMITTED LIGHT COLOR : RED SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A
LENS BACK SURFACE CONDITION : SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL
LENS FACE SURFACE CONDITION : SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL
MATERIAL : ZINC BODY
MATERIAL :ZINC ILLUMINATION DIRECTING DEVICE
SURFACE TREATMENT : DICHROMATE BODY
SURFACE TREATMENT : DICHROMATE ILLUMINATION DIRECTING DEVICE
STYLE DESIGNATOR : TRAP TYPE
TERMINAL TYPE AND QUANTITY : 1 CONNECTOR, RECEPTACLE
